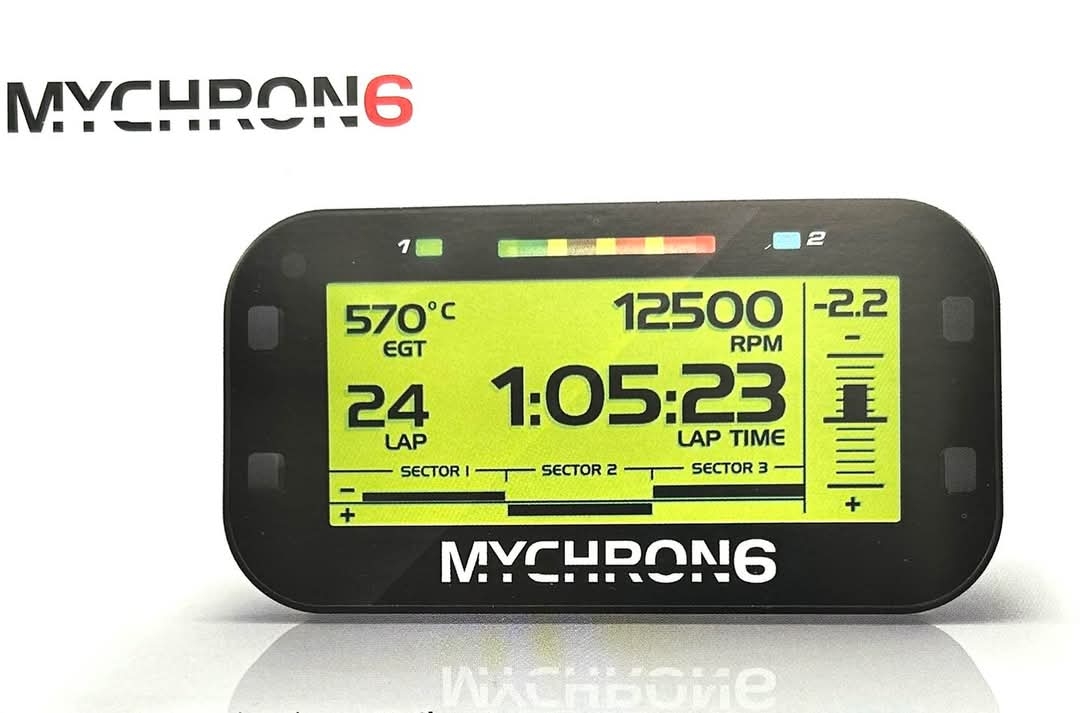

MyChron6 2T

The new MyChron6 2T is planned to be released by AiM in February 2025!

Here are the improvements in comparison to the previous MyChron5 GPS Laptimer:

• Wider display with 16 levels of gray

• Second CAN, user configurable

• USB-C connector for mass storage, battery charger or PC communication

• Wi-Fi or USB connection to the PC

• 6 axis IMU for measuring the steering wheel position

• 20 hours non-stop working battery

Initial Set-up & Customization Add-on (Included with MyChron6 Pre-Orders):

Personalize your MyChron6 with your team logo, add track database mapping, perform firmware updates, and troubleshoot any issues you are experiencing.  It is important to update your MyChron regularly to ensure proper function and laptime accuracy.

• Display: LCD 16-level gray scale

• Resolution: 320×136 pixels

• Backlight: 8 configurable RGB colors

• Shift lights/alarm LEDs: 5 + 2 configurable RGB LEDs

• Integrated track database

• Wi-Fi & Bluetooth connection

• GPS: 25 Hz

• External Power: 9/15 V

• Aux CAN connection

• USB connection: For data download, mass storage support, and battery charge

• Temperature inputs (2)

• Inertial Platform: 6 axis, 100 Hz frequency

• Digital inputs: Optical lap signal – Magnetic lap signal

• Digital outputs: 1, programmable high/low activation

• External modules: MyChron Expansion – IR Tempurature Controller – SmartyCam 3 Series – Lambda (LCU-One and LCU1S)

• Memory: 4 GB

• Internal battery type: Rechargeable Lithium

• Body: PA6 GS30%

• Dimensions: 150.0 x 79.0 x 36.6 mm

• Weight: 370 g

• Waterproof: IP67
